Description

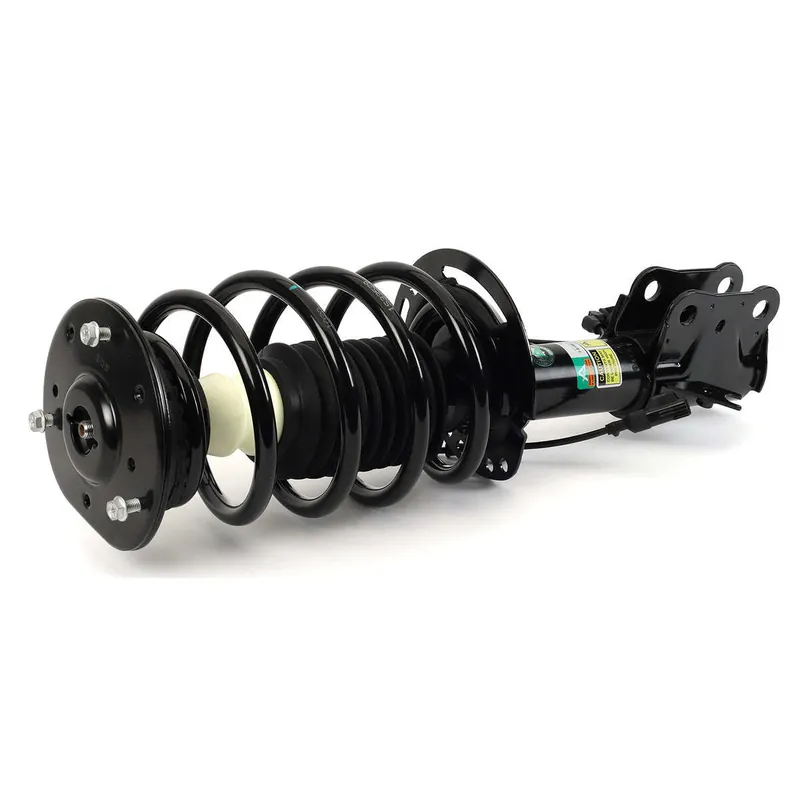

Arnott’s exclusive strut (SK-3600) manufactured for the 2013-2016 Lincoln MKZ (CD533) and Ford Fusion (CD391) front left side. This passive strut design delivers the stability, handling, control and comfort of the original OE strut without any external commands from the vehicle. Arnott engineers have determined and tested the optimal internal strut settings to mimic the OE performance. Arnott recommends replacing these struts in pairs.
FEATURES
- Converts active to passive
- Custom-valved shock adapted to driving style
- Improved seals to prevent leaks
- Electronic to passive shock technology
- Engineered and assembled in the USA
- Replace in Pairs
SPECIFICATIONS
- Active Or Passive Suspension: Passive
- Adjustable: No
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Air Adjustable: No
- Air Bladder: No
- Air Bladder Material: No
- Air Ride Suspension: No
- Bearing Plate Included: Yes
- Bladder Heavy Duty Crimping Rings Included: No
- Bladder Sleeve(s) Included: No
- Bladder(s) Included: No
- Body Diameter: 55
- Body End Measuring Point: Center Eye
- Boot Color: Black
- Boot Included: Yes
- Coil Over Springs Included: Yes
- Coil Spring Included: Yes
- Compressed Length: 380
- Dust Shield Included: Yes
- Dust Shield Material: Rubber
- Extended Length: 525
- Gas Charged: Yes
- Grade Type: Standard
- Heavy Duty Crimping Rings: No
- Housing Material: Steel
- Internal Construction Type: Twin-tube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Bracket
- Lower Mounting Isolator Included: No
- Mounting Hardware Included: Yes
- New Or Remanufactured: New
- Outer Housing Diameter: 55
- Progressive Spring Rate: No
- Protective Aluminum Can: No
- Shock Absorber Rod End Measuring Point: Shoulder of Stud
- Shock Spring Assisted: Yes
- Shock/strut Color: Black
- Spring Isolators Included: Yes
- Spring Rate Type: Linear
- Spring Seat Included: Yes
- Springs Included: Yes
- Travel Length: 145
- Upper Mount Type: Bolt
- Upper Mounting Isolator Included: Yes
Replaces OEM part Numbers: DG9Z18124B, DG9Z18124V, EG9Z18124B, EG9Z18124D, EG9Z18124K
