Description

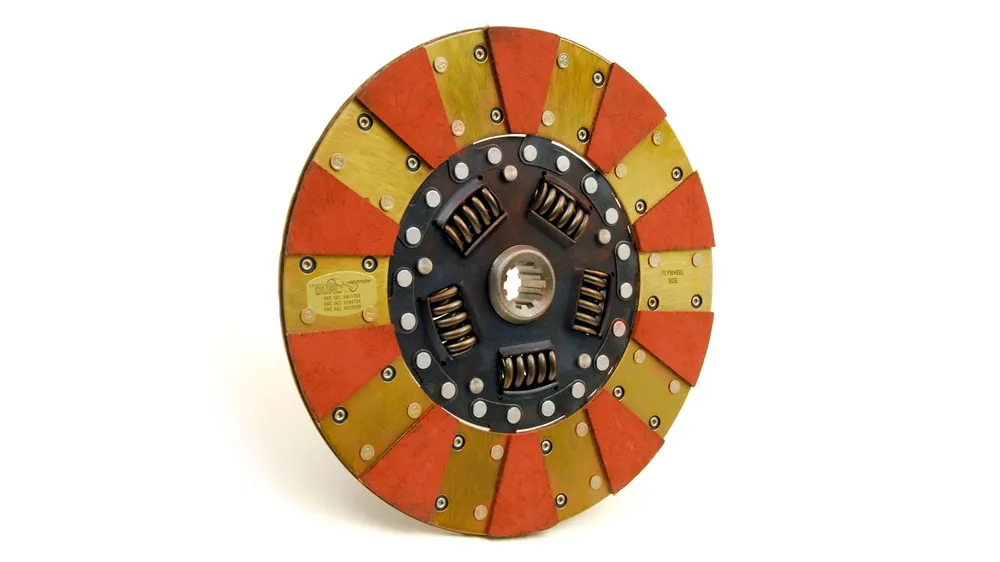

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.
Specification
- Out of Package Weight: 4.49 LBS
- Clutch Disc Diameter: 10.4 IN
- Clutch Disc Diameter: 264.2 MM
- Input Shaft Diameter: 1-1/16 IN
- Disc Material: Organic/Carbon composite
- Input Spline Quantity: 10
- Disc Type Sprung Solid: Sprung
- Material: Full Face and Segmented Organic Friction
- Disc Type: Full face/Segmented face
- Inside Diameter of Friction Surface: 6.490 IN
- Made In The USA: Assembled
