Description
Product information
| Weight | 4.75 lbs |
|---|---|
| Dimensions | 12 × 6.6 × 2.9 in |
| Material |
Steel |
| Quantity |
Kit |
| Spring Style |
Beehive |
| Spring Quantity |
Single Spring |
| Spring Rate |
372 lb/in |
| Coil Bind Height |
1.14 in |
| Installed Height |
1.8 in |
| Outside Diameter Of Outer Spring |
1.075 in / 1.31 in |
| Maximum Valve Lift |
0.6 in |
| Seat Load (Lbs) |
125 lbs |
| Seat Load At (In) |
1.8 in |
| Open Load (Lbs) |
367 lbs |
| Open Load At (In) |
1.15 in |
| Valve Spring Material |
Steel |
| Valve Spring Quantity |
16.0 |
| Retainers Included |
Yes |
| Retainers Material |
Chromoly |
| Retainers Quantity |
16.0 |
| Valve Seals Included |
Yes |
| Valve Seal Material |
Viton |
| Valve Seal Quantity |
16.0 |
| Seats Included |
Yes |
| Seat Quantity |
16.0 |
| Inside Diameter Of Outer Spring |
0.65 in / 0.885 in |
| Valve Locks Included |
Yes |
| Valve Lock Degree |
7 degree |
| Valve Lock Intended Stem Diameter |
8 mm |
| Valve Locks Material |
Steel |
| Valve Locks Quantity |
16.0 |
| UPC Code |
36584225485 |
| Brand |
COMP CAMS |
| Type |
Valve Springs |
| Condition |
New |
| Manufacturer Part Number (MPN) |
26918CS-KIT |

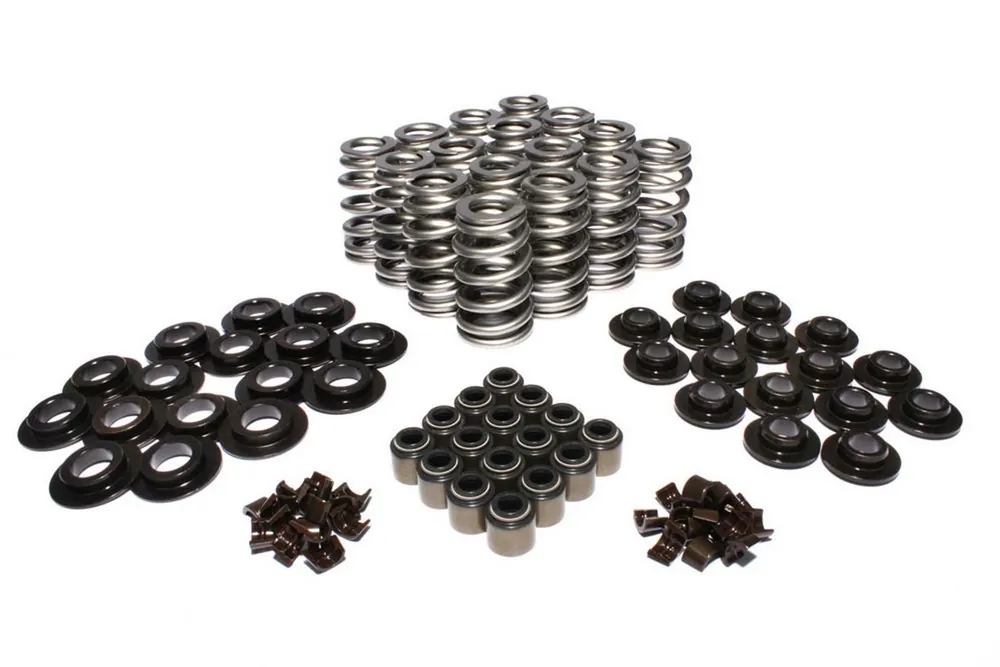

Description Valve Spring Kit – Beehive Spring – 372 lb/in Rate – 1.140 in Coil Bind – 1.075 in / 1.310 in OD – Chromoly Retainer / Viton Seal / Steel Valve Lock / Steel Seat – GM LS-Series – Kit Features
