Description
Product information
| Weight | 38.565 lbs |
|---|---|
| Dimensions | 26.2 × 11.65 × 8.55 in |
| Product Line |
Performer RPM |
| Assembled/Bare |
Assembled |
| Chamber Volume |
75 cc |
| Plug Angle |
Angle |
| Intake Runner Volume |
310 cc |
| Exhaust Runner Volume |
100 cc |
| Intake Port Shape |
Rectangle |
| Intake Port Location |
Stock |
| Exhaust Port Shape |
D |
| Exhaust Port Location |
Stock |
| Exhaust Port Bolt Pattern |
Stock |
| Intake Valve Size |
2.190 in |
| Intake Valve Included |
Yes |
| Exhaust Valve Size |
1.760 in |
| Exhaust Valve Included |
Yes |
| Valve Spring Included |
Yes |
| Valve Spring Diameter |
1.550 in |
| Valve Lock Angle |
7 Degree |
| Rocker Studs Included |
Yes |
| Rocker Stud Size |
7/16-20 in |
| Guide Plate Pushrod Size |
3/8 in |
| Valve Guide Included |
Yes |
| Valve Guide Material |
Bronze |
| Perimeter Mount Valve Cover |
Yes |
| Valve Seat Included |
Yes |
| Intake Valve Seat Material |
Ductile Iron |
| Exhaust Valve Seat Material |
Ductile Iron |
| Valve Seat Finish |
Machined |
| Combustion Chamber Finish |
As Cast |
| Intake Runner Finish |
As Cast |
| Exhaust Runner Finish |
As Cast |
| Accessory Bolt Holes |
Drilled and Tapped |
| Material |
Aluminum |
| Color |
Natural |
| Finish |
Natural |
| Quantity |
Each |
| Intake Valve Material |
Stainless |
| Exhaust Valve Material |
Stainless |
| Intended Camshaft Style |
Hydraulic Flat Tappet |
| Maximum Lift |
0.700 in |
| Maximum Rpm |
6500.0 |
| Valve Spring Number |
Dual |
| Valve Spring Retainers Included |
Yes |
| Valve Spring Retainer Material |
Steel |
| Valve Locks Included |
Yes |
| Valve Lock Material |
Steel |
| Valve Seal Included |
Yes |
| Valve Seal Style |
Positive Stop |
| Valve Seal Material |
PTFE |
| Pushrod Guide Plate Included |
Yes |
| UPC Code |
85347616497 |
| Brand |
EDELBROCK |
| Type |
Cylinder Heads |
| Condition |
New |
| Manufacturer Part Number (MPN) |
61649 |

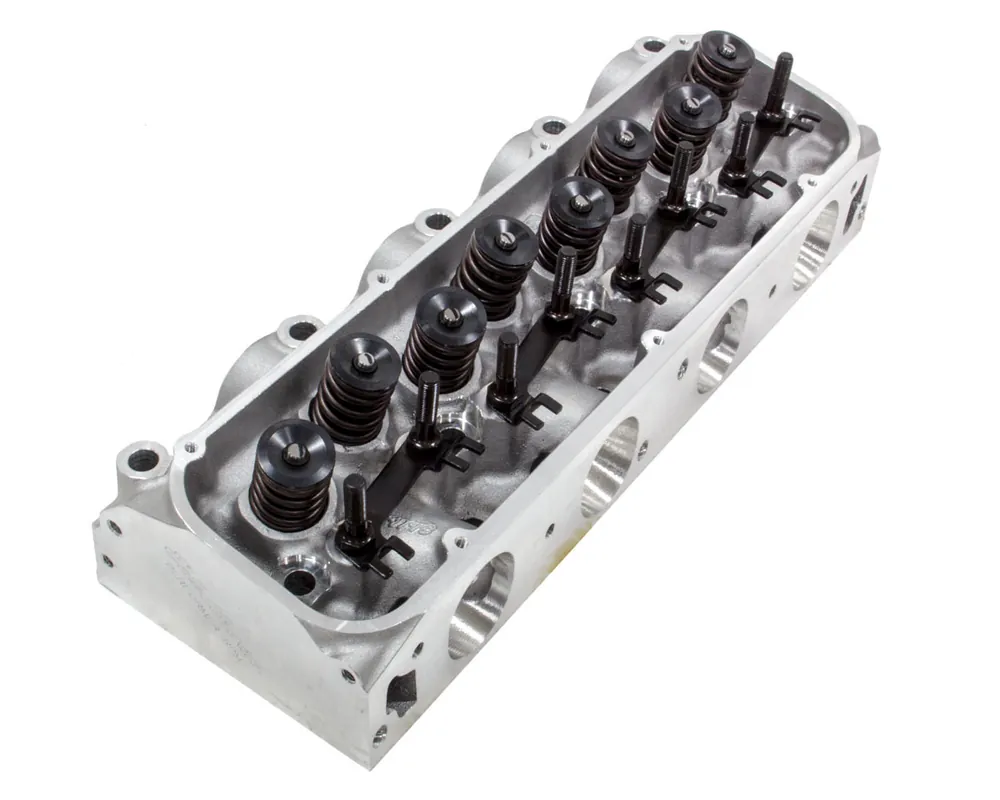

Description Cylinder Head – Performer RPM – Assembled – 2.190 / 1.760 in Valve – 310 cc Intake – 75 cc Chamber – 1.550 in Springs – Angle Plug – Aluminum – Big Block Ford – Each Features
