Description
Product information
| Weight | 6.3 lbs |
|---|---|
| Dimensions | 8.1 × 8.1 × 2.6 in |
| Product Line |
Stock Diameter Performance |
| Spring Style |
Standard |
| Spring Quantity |
Dual Spring |
| Damper |
Yes |
| Spring Rate |
348 lb/in |
| Coil Bind Height |
1.15 in |
| Installed Height |
1.875 in |
| Outside Diameter Of Outer Spring |
1.514 in |
| Outside Diameter Of Inner Spring |
1.125 in |
| Inside Diameter Of Outer Spring |
0.937 in |
| Inside Diameter Of Inner Spring |
0.697 in |
| Maximum Valve Lift |
0.67 in |
| Seat Load (Lbs) |
130 lbs |
| Seat Load At (In) |
1.875 in |
| Open Load (Lbs) |
330 lbs |
| Open Load At (In) |
1.3 in |
| Quantity |
Kit |
| Valve Spring Material |
Steel |
| Valve Spring Quantity |
16.0 |
| Retainers Included |
Yes |
| Retainers Material |
Chromoly |
| Retainers Quantity |
16.0 |
| Valve Locks Included |
Yes |
| Valve Lock Degree |
10 degree |
| Valve Lock Intended Stem Diameter |
3/8 in |
| Valve Locks Material |
Steel |
| Valve Locks Quantity |
16.0 |
| Brand |
HOWARDS RACING COMPONENTS |
| Condition |
New |
| Type |
Valve Springs |
| Manufacturer Part Number |
98636-K32 |

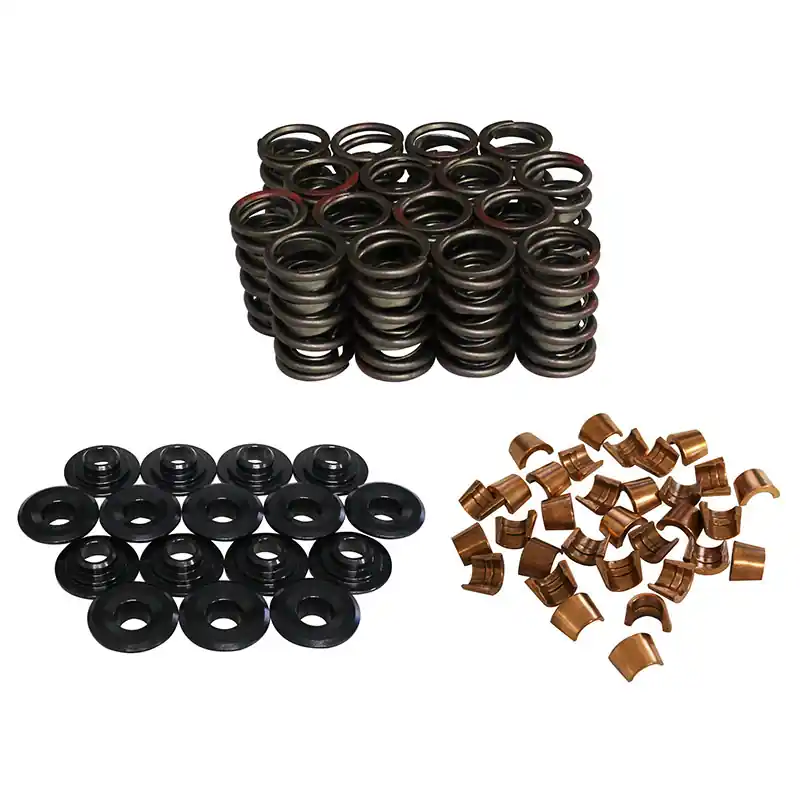

Description Valve Spring Kit – Dual Spring / Damper – 348 lb/in Rate – 1.150 in Coil Bind – 1.514 in OD – Locks / Chromoly Retainers – Kit Features
