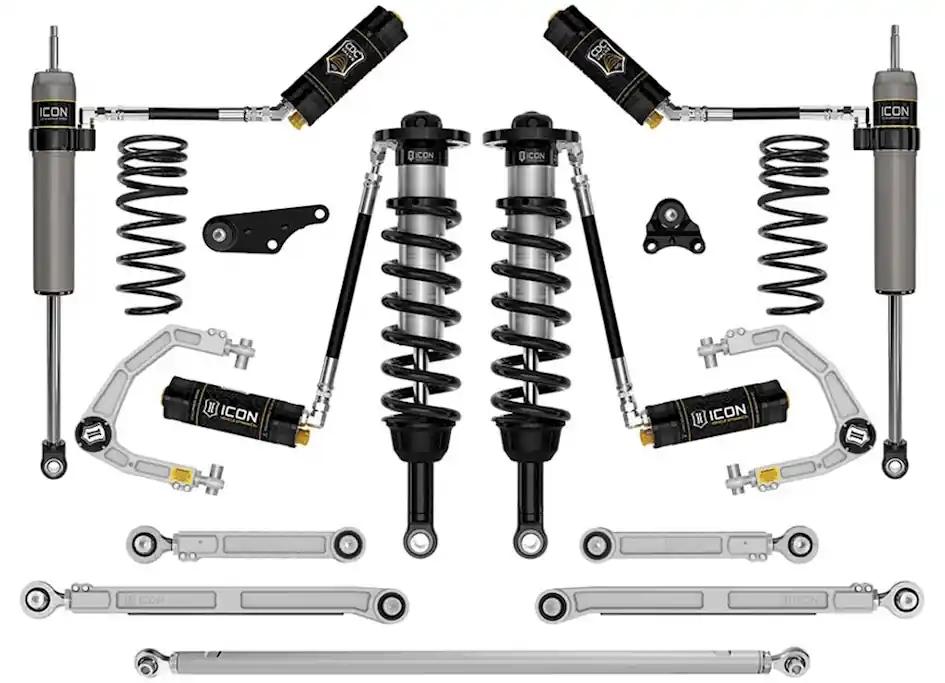

Description
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8″ shafts provide increased performance and balanced tune with coilovers
- 6061 aircraft grade aluminum CNC machined components
- Adjustable 2.5 Series coilovers provide 1.25-3″ front lift height over stock
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- Dual rate rear coil springs improve performance and ride quality while providing .75″ of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Increased wheel travel and improved ride quality over stock
- On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Vehicle specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #150: Shocks are fully serviceable
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma or 4Runner, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individuall
- APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: 17×8.5 with 6.32” Backspace / 40mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 6.6” Backspace / 40mm Offset
