Description

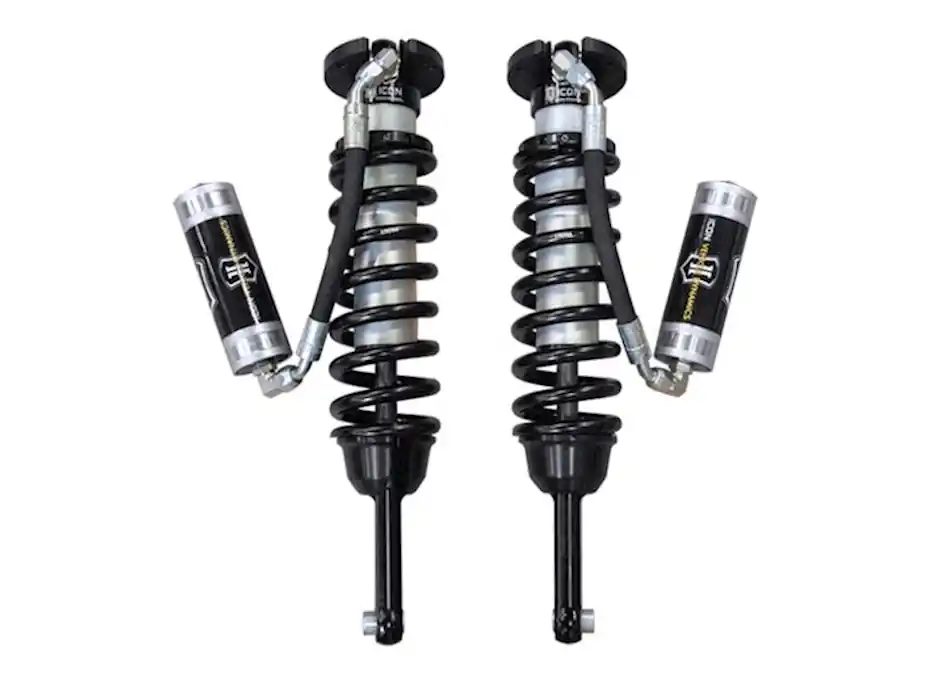

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5ö of lift height adjustability on 2005-2015 models or 0-2.75ö of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICONÆs Vehicle-specific shock length and valving along with the larger 2.5ö shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
- 5/8″ PTFE-lined spherical bearing
- Billet aluminum upper mount
- CAD-plated threaded body
- Completely re-buildable
- Extended Travel length requires installation of aftermarket front upper control arms
- External Reservoirs Ensures Maximum Cooling
- Height-adjustable coilovers offer 0-3.5″ or 0-2.75″ of lift height adjustment depending on year model
- Hose Length Optimized for Increased Fluid Transfer
- ICON engineered coil springs
- Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
- Kit Includes Sway bar relocation brackets
- Vehicle specific tuned for superior shock damping and control
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
- APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
- APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5.00” Backspace / 0mm Offset
- TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5″ over stock
- TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
- TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
