Description

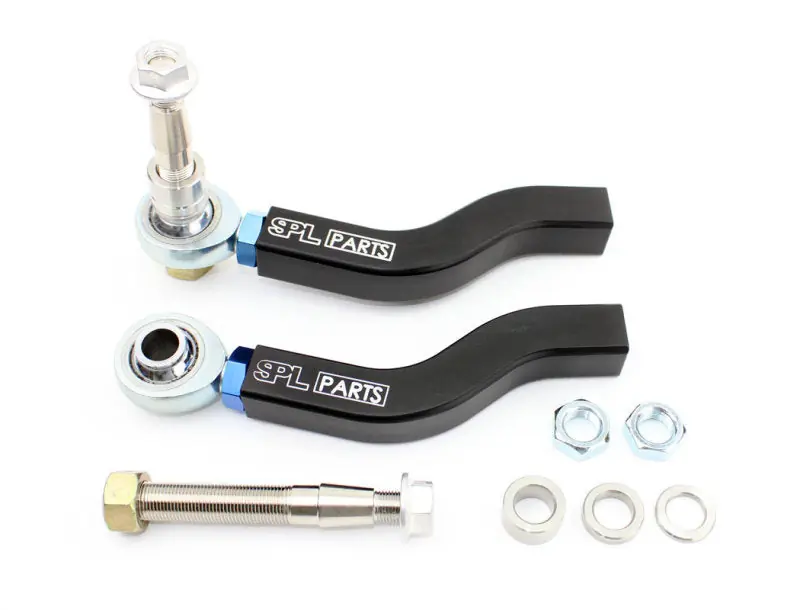

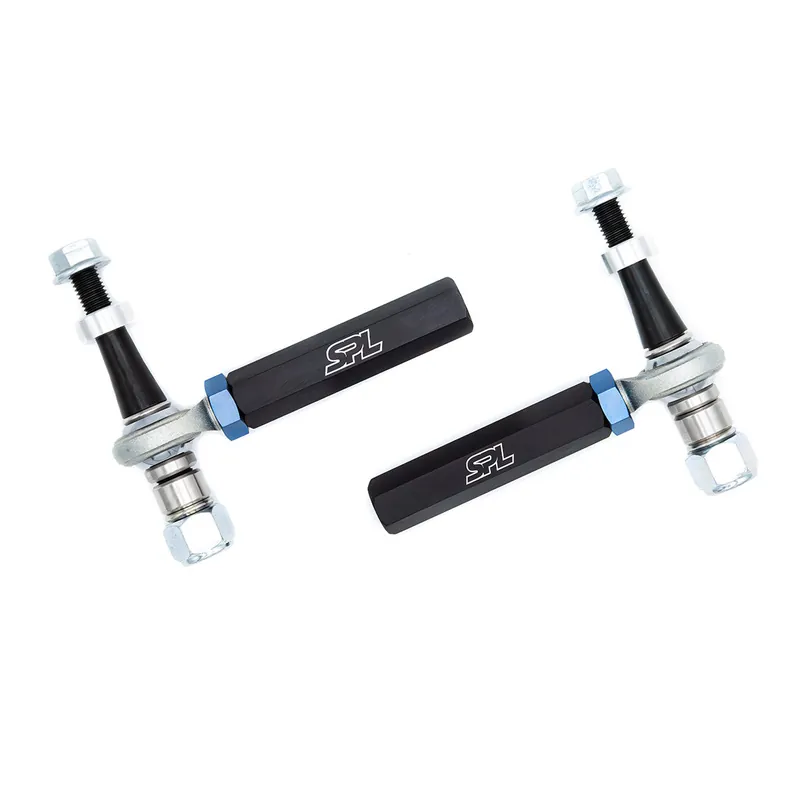

The SPL Parts Adjustable Front Tie Rod Ends (Part #SPL TRE FRS) are designed to correct bumpsteer and dramatically improve steering precision on lowered GR86, BRZ, GT86, FR-S, and WRX/STI platforms. By allowing the tie rod pivot point to be relocated using spacers, these tie rod ends reduce dynamic toe change during suspension compression, resulting in more predictable handling, improved braking stability, and reduced front tire wear.
Lightweight construction, a large range of adjustment, and maintenance-free FK PTFE-lined bearings make these tie rod ends ideal for everything from daily-driven street cars to aggressive track builds.
- Brand: SPL Parts
- Part Number: SPL TRE FRS
- Position: Front
- Component Type: Adjustable front tie rod ends with bumpsteer correction
- Adjustment Range: Large range of bumpsteer correction via spacers
- Weight:
- 2.22 lbs (1.0 kg) per pair
- 1.11 lbs (0.5 kg) per side

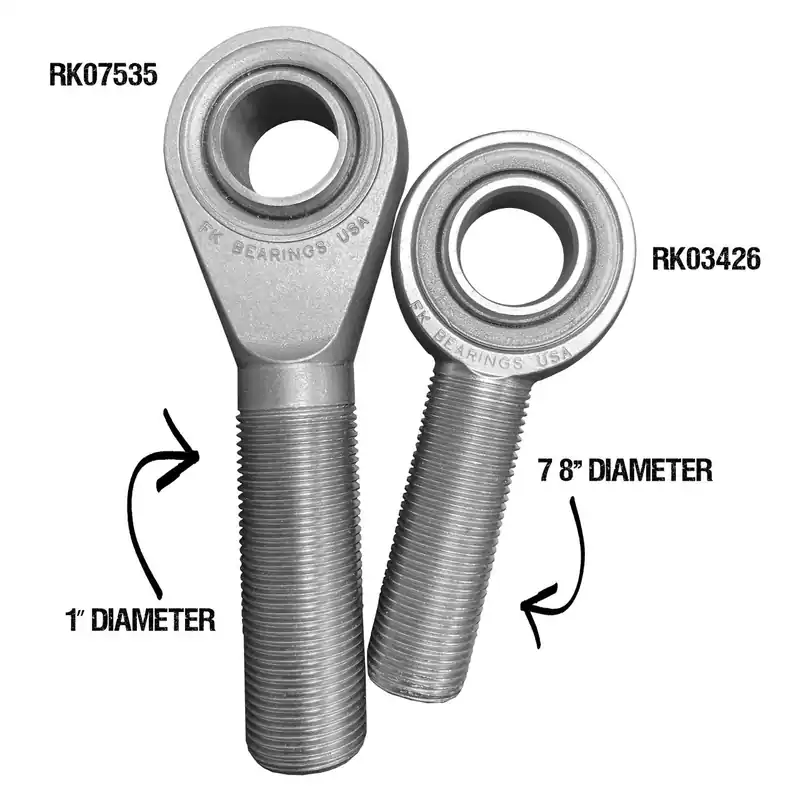

- Bearings: Maintenance-free, US-made FK PTFE-lined spherical bearings
- Benefits: Improved steering feel, stability, and reduced toe change over bumps
- Sold As: Pair
- Manufacturing: Made in the USA
Performance Benefits
- Reduces bumpsteer on lowered vehicles
- Improves steering response and on-center feel
- Enhances stability while braking and turning
- Reduces front tire toe and shoulder wear
- Provides predictable handling over rough roads and track curbing
Construction & Materials
- 6061-T6 aluminum turnbuckle
- 6061-T6 aluminum ring spacer (GR86 and 2nd Gen BRZ)
- 4140 chromoly steel tapered stud
- 304 stainless steel spacers (1/8-inch, 1/4-inch, and 1/2-inch)
- Ti-6Al-4V titanium jam nut, anodized blue
Vehicle Fitment
- Toyota GR86 ZN8 (2021+)
- Toyota 86 / Scion FR-S ZN6 (2013-2021)
- Subaru BRZ ZC6 / ZD8 (2013+)
- Subaru WRX / STI GR / VA / VB (2008+)
Replaces OEM Part Numbers
Toyota:
- SU003-00833
- SU003-00834
Subaru:
- 34161-CA000
- 34161-CA010
- 34161-CC000
- 34161-CC010
