Description

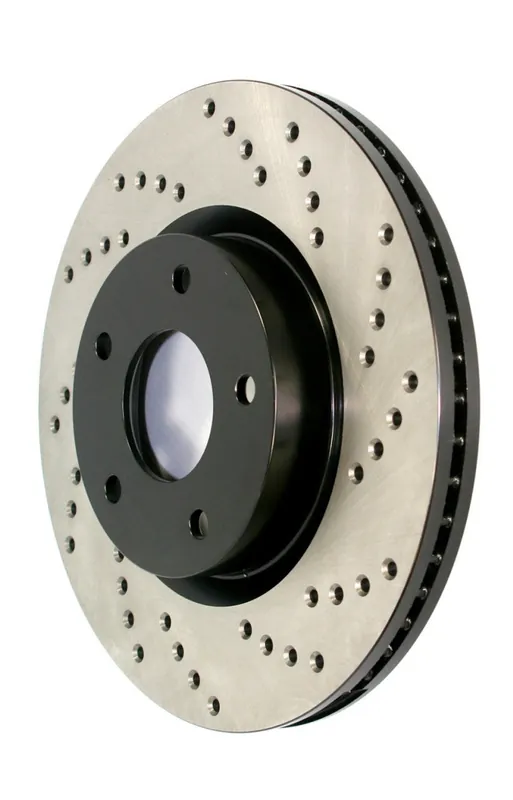

C-TEK STANDARD DISC BRAKE ROTORS
MAZDA-MIATA (93-90)
Excellent performance; service life and value for a wide range of applications.
Technical Details
| California Proposition 65 | WARNING: Cancer and Reproductive Harm |
| Brand Description | C-Tek Standard Brake Rotor |
| Outside Diameter (Millimeter) | 234.700 |
| Outside Diameter (Inch) | 9.240 |
| ABS Tone Ring Included | No |
| Short Description | Standard Brake Rotor |
| Hazardous Material | No |
| Minimum Order Quantity | 1 |
| Weight [cntrc] lbs | 8.500 |
| Misc Holes [cntrc] | 1 |
| California Proposition 65 Site [basic] | https://www.p65warnings.ca.gov/ |
| Mount Spread – Ctr2Ctr [cntrc] | Standard |
| Disc Mounting [cntrc] | Floating |
| Nominal Thickness (Inch) | 0.709 |
| Bearings Included | No |
| Mounting Bolt Hole Circle Diameter (Inch) | 3.937 |
| Stud/Lug Hole Diameter (Inch) | 0.512 |
| Overall Height (Inch) | 1.772 |
| Surface Type | Smooth |
| Center Hole Diameter (Inch) | 2.165 |
| Center Hole Diameter (Millimeter) | 55.000 |
| Overall Height (Millimeter) | 45.000 |
| Discard Thickness (Inch) | 0.630 |
| Nominal Thickness (Millimeter) | 18.000 |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter (Millimeter) | 13.000 |
| Discard Thickness (Millimeter) | 16.000 |
| Mounting Bolt Hole Circle Diameter (Millimeter) | 100.000 |
| Solid Or Vented Type Rotor | Vented |
| Vane Style [cntrc] | Straight |
| Country of Origin | China |
