Description

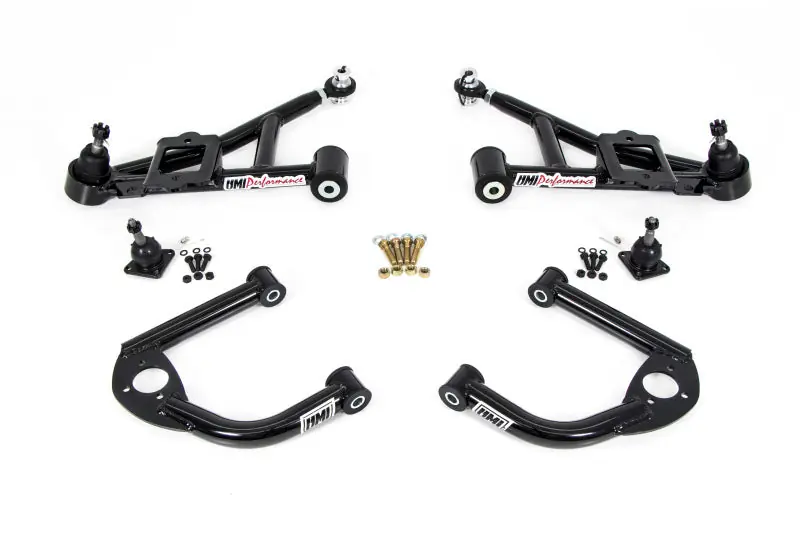

UMI’s fabricated tubular a-arms provide a robust foundation for your 4th Gen’s front suspension. Our a-arm kit offers increased rigidity, smooth travel, precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and welded to form a solid base. The in-house built 4130 chromoly tube adapter on the lower a-arm provides a durable attachment point for the precision rod-end while the other side features a smooth, quiet bind free polyurethane bushing. The lower a-arms feature UMI’s new bind free bushing end that uses a two-piece heavy-duty sleeve allowing free pivoting.
The spring and shock attach to the lower arm via a tough 1/4” thick steel shock mount. The CNC machined lower ball joint cup and CNC laser cut upper pad feature premium ball joints installed. UMI’s tubular lower a-arms can be easily installed on the factory k-member or any aftermarket k-member as well as the stock spindle – making it a true bolt-on product. Proudly manufactured in Philipsburg, PA – USA.
Chromoly version uses 1-1/4” 4130 chromoly tubing, maintaining strength and reducing product weight by an additional 2lbs for a total weight reduction of 10lbs. P/N 230511CM.
Overall, UMI’s tubular a-arms provide a strong and reliable suspension upgrade for your vehicle.
PRODUCT FEATURES
- 1-1/4” USA mild steel DOM tubing
- TIG Welded 4130 chromoly threaded tube adapters for thread durability
- CNC machined lower ball joint cup
- Heavy duty CNC laser cut ¼” thick shock mount
- Premium upper and lower ball joints installed
- ¾” Teflon lined, high load capacity race rod ends
- Greaseable polyurethane bushings
- High grade shock mounting hardware included
- Uses balance of OEM hardware or use new UMI hardware kit

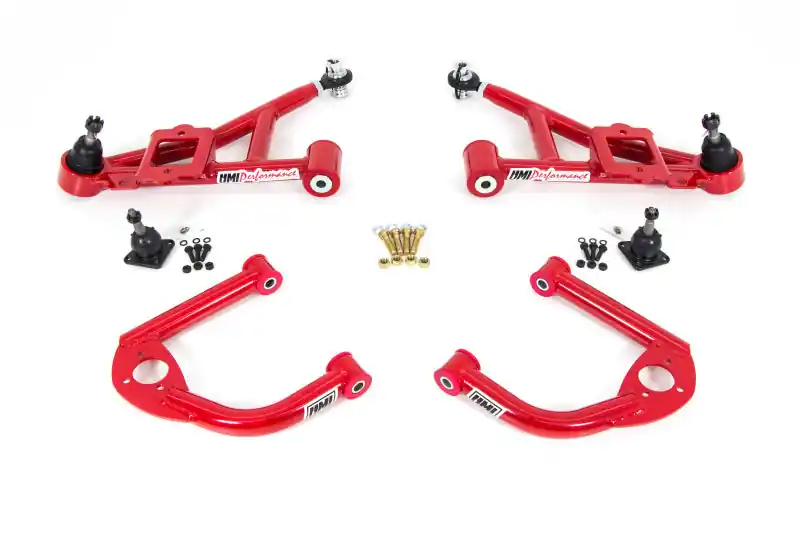

- Durable red or black powder coat
- Made in Philipsburg, PA – USA
| Fitment | 1993-2002 GM F-Body |
|---|---|
| Platform | 1993-2002 GM F-Body |
| Manufacturer | UMI Performance |
| Direct Bolt-On |
Yes |
| Control Arm Style |
Tubular |
| Finish |
Powder Coat |
| UOM |
Pair |
| Material |
Mild Steel |
| Hardware |
Not Included |
| Adjustable |
No |
| Modifications |
None |
This ‘230511 – 1993-2002 GM F-Body A-Arm Kit, Non-Adjustable, Street’ fits the following platforms:
1993-2002 GM F-Body
- 1993-2002 Chevrolet Camaro
- 1993-2002 Pontiac Firebird
This 230511 – 1993-2002 GM F-Body A-Arm Kit, Non-Adjustable, Street fits the following vehicles:
Chevrolet
Camaro
- 1993 Chevrolet Camaro
- 1994 Chevrolet Camaro
- 1995 Chevrolet Camaro
- 1996 Chevrolet Camaro
- 1997 Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
Pontiac
Firebird
- 1993 Pontiac Firebird
- 1994 Pontiac Firebird
- 1995 Pontiac Firebird
- 1996 Pontiac Firebird
- 1997 Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
