Description

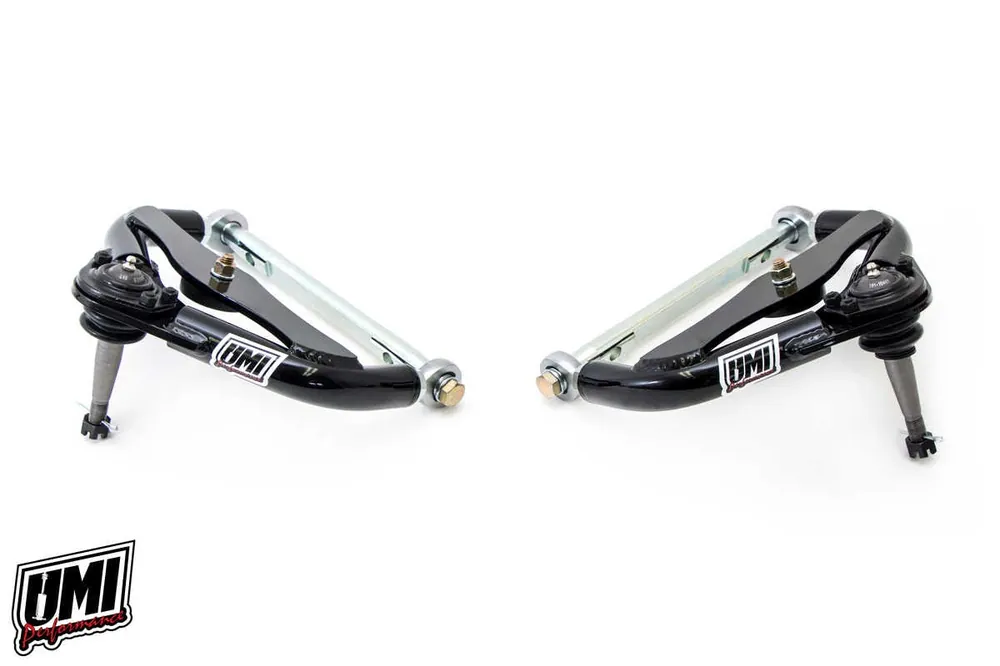

Upper A-arms, Adjustable, 1” Taller Ball Joints
Hardware not included
These arms are recommended for all racing needs, featuring 1” taller low friction ball joints for better camber curve.
Manufactured, tested, and raced in Philipsburg, PA – USA.
Fitment Note: 3056-3 arms include 1” taller ball joints and are compatible with factory spindles. Shims may not be necessary, but could be required in some cases. Contact UMI for more information.
PRODUCT FEATURES
- Relocated ball joint pad for increased caster and improved steering feel without excess shims
- 1” taller ball joint for improved camber curve
- CNC laser cut ball joint mounting pad
- 0.120” wall thickness 1.250” diameter DOM tubing
- TIG welded for superior strength and clean looks
- 4130 chromoly cross shafts, CNC machined & zinc plated
- Polyurethane bump stops included
- Travel limiting bolt compatible
- Direct bolt-in compatible with factory or UMI lower a-arm
- May also work in conjunction with other lower a-arms and/or spindles (contact UMI to discuss)
- Package includes recommended alignment specs and detailed installation instructions
- Designed, tested, manufactured and raced in Philipsburg, PA-USA
- Exact upper a-arm on UMI’s ’79 Monte Carlo
- Green Machine.
Fitment
1978-1988 GM G-Body , 1982-2003 S10/S15
