Description

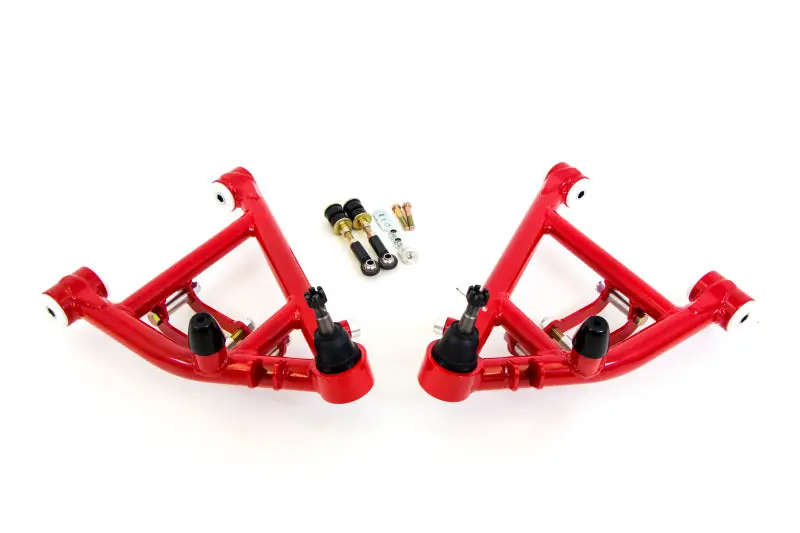

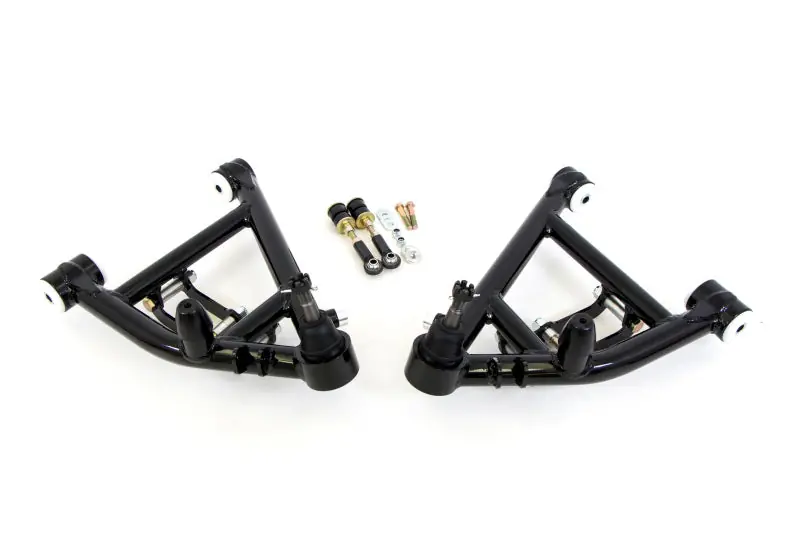

UMI’s 3057-1 lower a-arms feature a relocated ball joint cup which offers 10 degrees caster when used with our P/N 3056 upper arm while keeping the spindle pin centered. The 3/4” taller Howe ball joint works to optimize the roll center, lower the center of gravity and lowers the ride height ½”. The double shear shock mount is removable which permits spring and shock changes at the track in minutes without disconnecting the ball joints. An aluminum steering stop is adjustable and limits steering lock to prevent tire and wheel damage. UMI designed Delrin bushings help the 3057-1 travel smoothly for bind-free operation whether running street, strip, road race or auto-x. Also included is a double shear sway bar mounting system which accepts UMI sway bars and many other manufacturers stock location aftermarket units. Available in UMI red or black powder coat. 100% designed, manufactured and raced with pride in the USA. Battle tested on the iconic UMI Green Machine Performance note: UMI recommends adding the P/N 3060 bump steer kit for optimal performance. Lower a-arms work best when used in conjunction with caster corrected upper a-arms. Installation Notes: The 3057-1 is a versatile competition a-arm that can be used with various springs and shocks configurations.
PRODUCT FEATURES
- 1-¼” and 1-½” USA DOM tubing construction
- CNC laser cut components throughout
- 10 degrees caster potential when combined with UMI 3056 upper a-arm
- Removable double shear mount to allow spring/shock replacement without removing spindle
- Mount spacing suitable for aftermarket manufacturers shock/spring combos
- Adjustable steering stop
- Double shear swivel sway bar mounts and hardware work with UMI P/N 3035 and most other factory eyelet style sway bars
- Smooth travel Delrin bushings, UMI designed and machined
- Saves 3.2lbs per set as compared to stock stamped a-arms
- Suitable for competition use. Road race, auto-x, drag race, street corner carving
- Designed, tested, manufactured and raced in Philipsburg, PA-USA
- Our choice on the UMI Green Machine
- Installation Notes:
- Hybrid coilover kits A224-XXXR and A204-XXXR can be used with no modifications required to the car
- 3058-650 or 3058-850 can be used with trimming to the upper spring locator
- Coming soon will be a full racing coilover which requires major construction in the upper spring pocket area
- The 3057 cannot be used with standard size coil springs and stock mount shocks.
| Fitment |
1978-1988 GM G-Body 1982-2003 S10/S15 |
|---|---|
| Platform | 1982-2003 S10/S15 |
| Manufacturer | UMI Performance |
| Direct Bolt-On |
Yes |
| Control Arm Style |
Tubular |
| Finish |
Powder Coat |
| UOM |
Pair |
| Material |
Mild Steel |
| Hardware |
Not Included |
| Modifications |
None |
This ‘3057-1 – Lower A-Arms, Coilover Only, Competition’ fits the following platforms:
1978-1988 GM G-Body
- 1978-1987 Buick Regal
- 1978-1987 Chevrolet El Camino
- 1978-1983 Chevrolet Malibu
- 1978-1988 Chevrolet Monte Carlo
- 1978-1987 GMC Caballero
- 1981-1988 Oldsmobile Cutlass
- 1982-1986 Pontiac Bonneville
- 1978-1987 Pontiac Grand Prix
1982-2003 S10/S15
- 1982-2003 Chevrolet S-10 2WD
- 1983-1994 Chevrolet S10 Blazer 2WD
- 1982-1990 GMC S15 2WD
- 1991-2003 GMC Sonoma 2WD
- 1983-1991 GMC S15 Jimmy 2WD
