Description

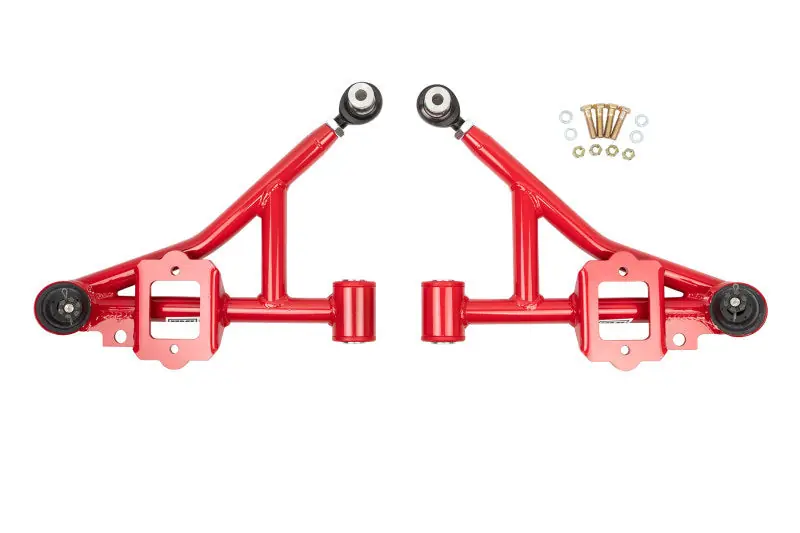

UMI’s fabricated tubular a-arms provide a rock solid foundation for your 4th Gen’s front suspension. Our P/N 2305 a-arms are built to offer smooth travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and TIG welded to the ball joint cup featuring our double strength configuration. UMI built 4130 CrMo tube adapters provide a durable attachment point for the high misalignment rod-end while the other side features a smooth, quiet bind free polyurethane bushing.
The unique combination of precision and comfort makes for a great street oriented a-arm with racing tendencies. The spring and shock attach to the arm via a tough 1/4” thick steel shock mount. The CNC machined ball joint cup is attached and a premium ball joint is installed. UMI’s tubular lower a-arms can be installed on the factory k-member or any aftermarket k-member as well as the factory spindle – making this a true bolt-on product. Manufactured with pride in Philipsburg, PA – USA.
PRODUCT FEATURES
- 1-1/4” USA mild steel DOM tubing
- TIG Welded 4130 CrMo threaded tube adapters
- CNC machined lower ball joint cup
- Heavy duty CNC laser cut ¼” thick shock mount
- Premium lower ball joints
- Race quality high misalignment rod end
- Greaseable polyurethane bushings
- Quality shock mounting hardware included
- Durable red or black powder coat
- Made in Philipsburg, PA – USA
| Fitment | 1993-2002 GM F-Body |
|---|---|
| Platform | 1993-2002 GM F-Body |
| Manufacturer | UMI Performance |
| Direct Bolt-On |
Yes |
| Control Arm Style |
Tubular |
| Finish |
Powder Coat |
| UOM |
Pair |
| Material |
Mild Steel |
| Hardware |
Not Included |
| Modifications |
None |
This ‘2305 – 1993-2002 GM F-Body Lower A-Arms, Street’ fits the following platforms:
1993-2002 GM F-Body
- 1993-2002 Chevrolet Camaro
- 1993-2002 Pontiac Firebird
This 2305 – 1993-2002 GM F-Body Lower A-Arms, Street fits the following vehicles:
Chevrolet
Camaro
- 1993 Chevrolet Camaro
- 1994 Chevrolet Camaro
- 1995 Chevrolet Camaro
- 1996 Chevrolet Camaro
- 1997 Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
Pontiac
Firebird
- 1993 Pontiac Firebird
- 1994 Pontiac Firebird
- 1995 Pontiac Firebird
- 1996 Pontiac Firebird
- 1997 Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
